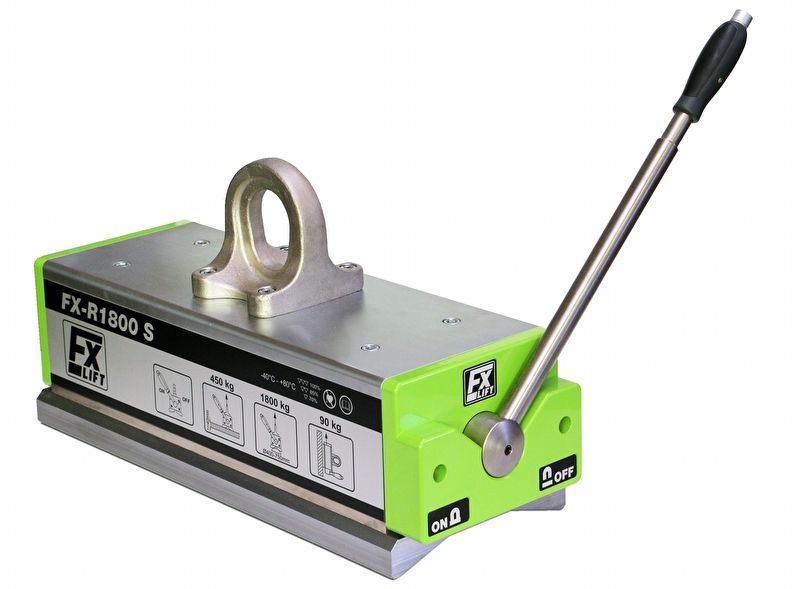

FX-R1800
| Max. Load capacity Flat From | 40 mm |
| Max. Load capacity Flat | 1800 Kg |
| Max. Load capacity Round From | Ø 120-560 mm |
| Max. Load capacity Round | 1200 Kg |
| Safety factor | 3.5 |
| Max. Operation temperature | 80 °C |
FX-R1800
FX-R1800
FX-R1800
| Dimension L | 648 mm |
| Dimension B | 248 mm |
| Dimension H | 190 mm |
| Dimension H1 | 334 mm |
| Dimension R | 534 mm |
| Dimension X | 68 mm |
| Dimension Y | 89 mm |
| Weight | 182 Kg |
FX-R1800
FX R
| Model | Max. Load Flat | Max. Load Round | Weight | ||
|---|---|---|---|---|---|
| From Thikness | Load | Diameter | Load | ||
| FX-R100 | 8 mm | 100 Kg | Ø 25-150 mm | 100 Kg | 4 Kg |
| FX-R225 | 10 mm | 225 Kg | Ø 50-205 mm | 225 Kg | 9.5 Kg |
| FX-R450 | 20 mm | 450 Kg | Ø 50-270 mm | 450 Kg | 22 Kg |
| FX-R750 | 20 mm | 750 Kg | Ø 70-370 mm | 750 Kg | 49 Kg |
| FX-R1200 | 40 mm | 1200 Kg | Ø 120-560 mm | 1200 Kg | 127 Kg |
| FX-R1800 | 40 mm | 1800 Kg | Ø 120-560 mm | 1200 Kg | 182 Kg | Security factor 3.5 | Test Method EN 13155 | Max Operating Temperature 80 °C |
COMPLETE RANGE FX ACCESSORIES: Magnetic Trusses
FX LT
Magnetic lifting beam from 600 to 4800 kg
FX-LT are suitable for the needs of sheet metal transformers, laser and flame cutters. Two FX-VV lifting magnets and a lightweight truss with two-hanger chain allow the horizontal handling of larger workpieces. The magnets can be removed from the truss in a few simple steps to lift small formats with just one magnet.
FX KT
Magnetic lifting beam from 240 to 480 kg
FX-KT lift parts that cannot be picked up with a magnet in the center, such as rings and flanges.
Two FX magnets with adjustable center distance, mounted on a high-strength aluminum truss, ensure a secure hold.
With a few simple steps the magnets can be removed from the truss and used individually.
FX LT KT
SPECIAL SOLUTIONS
Vega Technik will assist you in designing and manufacturing special accessories tailored to your specific needs
COMPLETE RANGE FX ACCESSORIES: Horizontal-Vertical Systems
FX HV
Horizontal-Vertical system from 150 to 3000Kg
The FX-HV horizontal-vertical system is the ideal solution for transporting parts from horizontal to vertical or in reverse order. Special dimensions are available on request.
FX HVS
Tilting horizontal-vertical system.
The HV FX-HVS systems allow the suspended load to be rotated by 90°
The load supported by magnetic lifters can change position from horizontal to vertical at any time
FX HV HVS
SPECIAL SOLUTIONS
Vega Technik will assist you in designing and manufacturing special accessories tailored to your specific needs
COMPLETE RANGE FX SERIES
FX UNIVERSAL
The most versatile range of lifters for multiple types of use from 150 to 3000Kg.
FX R
A range of lifters specific for round loads from 100 to 1800Kg and from 25 to 560 mm. in diameter
FX P
A range of lifters specific for pipes and thin thicknesses from 170 to 1650 kg
FX VV
MA range of lifters specific for profiles with a 90° angle and hot parts up to 150°C from 200 to 800Kg.
FX VV HOT
A range of lifters specific for hot parts up to 250°C from 150 to 600Kg
FX C
A range of lifters specific for flanges, sleeves and discs from 175 to 450Kg
