MBX Magnetic clamping blocks
MBX magnetic clamping blocks have two opposite sides that are activated simultaneously. They are designed for anchoring parts on steel surfaces such as assembly tables. The hexagonal hole of the selector shaft can also be used to connect several MBX blocks together in order to secure longer parts. Activation is carried out using the removable key with a 90° turn, and the MBX surfaces are fully nickel-plated. Thanks to the two differently shaped clamping sides of the MBX, virtually any geometry can be anchored, whether the material is round, sheet, or profile.
MBX
Available models
| Model | Maximum capacity | Active surface | Dimensions | Weight | |||
|---|---|---|---|---|---|---|---|
| Flat | 90° | L | B | H | |||
| MBX-5 | 500 Kg | 120x57 mm | 136x64 mm | 143 mm | 64 mm | 71 mm | 3.9 Kg |
| MBX-7 | 700 Kg | 156x57 mm | 172x64 mm | 143 mm | 64 mm | 71 mm | 4.9 Kg |
| MBX-10 | 1000 Kg | 162x76 mm | 178x87 mm | 184 mm | 87 mm | 88 mm | 8.8 Kg |
| Safety factor 2.5 | Max Operating Temperature 80 °C | ||||||
MBX

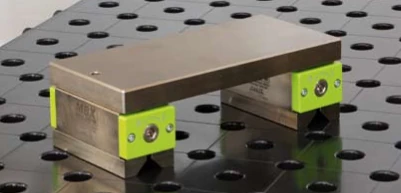

MBX at work
